BroilChef Yosemite U-Shaped 12 ft Stainless Steel Outdoor Kitchen with Pizza Oven Modular Suite | BC-GS421PHS-P18S

(0)
$14,595.00 USD
-11% $16,399.00 USD $14,595.00 USD
Sophistication meets functionality: Discover the allure of our premium outdoor kitchen set.
  • Namebrand BroilChef
  • SKU BC-SFS-GS421PHS-P18S

Love this? Share it with a friend!

  • Overall Dimension(straight): 149"Wx64"Hx36"D in | 378.5(W) x 162.6(H) x 91.4(D) cm
  • Overall Weight: 649 lbs | 294.4 kgs
  • Island Size(ft): Straight: 12 Ft | 365.8 cm | U-Shaped: 13 Ft | 396.2 cm
  • Total Heat Output: 87,600 BTU
  • Main Cast Stainless Steel Burners (12000 x 3) = 36,000BTU
  • Side Burners (13,000 x 2) = 26,000BTU
  • Main Ceramic Infrared Searing Burner = 12,000BTU
  • Main Ceramic Infrared Back Burner = 13,600BTU
  • Total Cooking Area: 859 sq.in (5541 cm²)

Grill Cooking Area: 26 x 18" (66 x 46 cm)  |  24 burgers
Griddle Cooking Area: 23” × 17” ( 58.4 x 43.1 cm) | 20 burgers

  • Rotisserie Included: Yes
  • Lighting: LED knob lights (blue-to-red), halogen grill lights
  • Exterior Material: 304 Stainless Steel Hood and Cabinet
  • Interior Material: 304 Stainless Steel
  • Warranty: Lifetime Limited Warranty*
  • Certifications: cETLus/CSA
  • Commercial Use: Not Covered (Warranty void if used in a commercial setting)

About This Product

A complete 304 stainless outdoor kitchen for those who host: grill, griddle, rotisserie, an 18" gas pizza oven, and a sink-and-fridge bar station all in one modular island.
  • A dedicated pizza oven: An 18" gas pizza oven rated at 19,000 BTU bakes while the grill works.
  • 859 sq in of gas cooking: 468 sq in grill (26" × 18") plus a 391 sq in 304 stainless griddle (23" × 17").
  • 87,600 BTU across seven grill burners: Three cast stainless mains, a ceramic infrared sear burner, two side burners and an infrared rotisserie burner, rotisserie kit included.

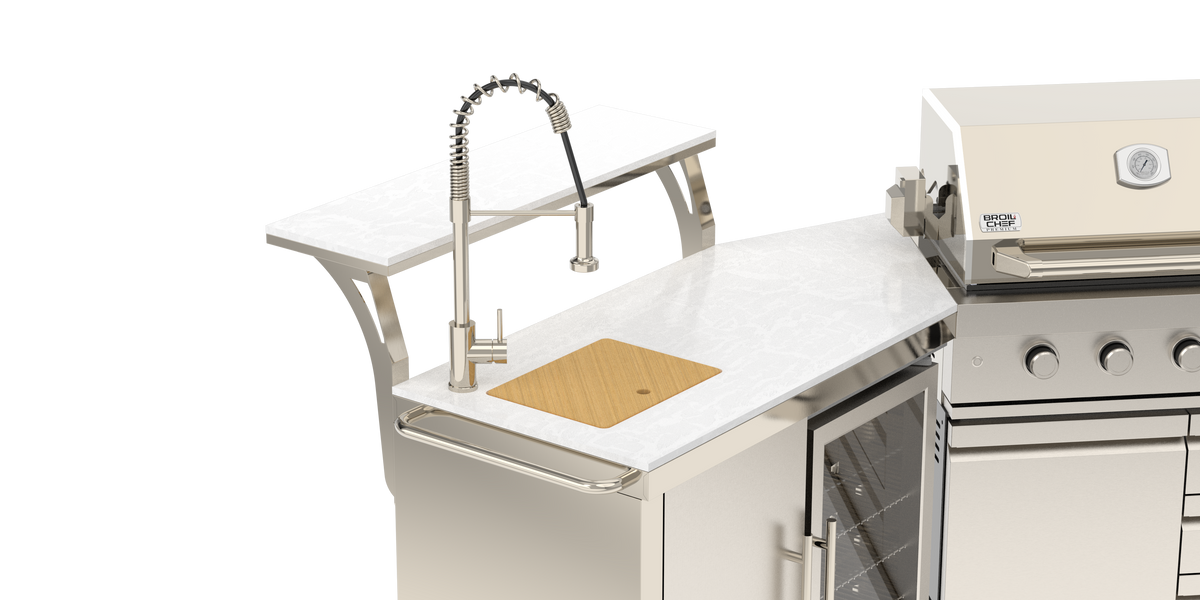

  • Prep, rinse, chill, serve: Stainless sink and faucet, wooden cutting board, trash drawer, bar table and built-in refrigerator.
  • Sintered stone countertop: Resists UV, heat, scratches and stains; white surface, 304 stainless body.

Prep Module Grill Module Additional Module

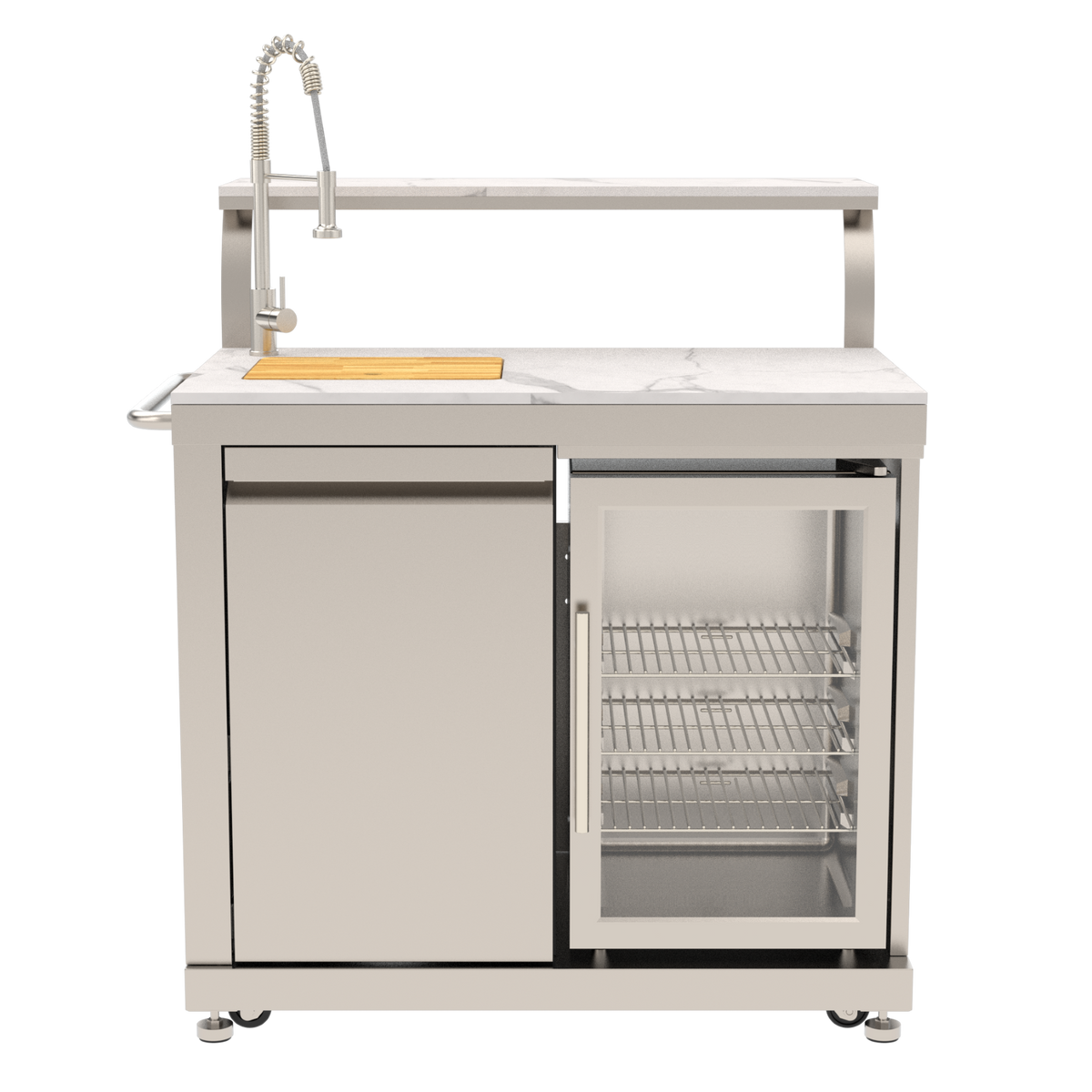

Bar, Sink and Fridge Module

  • SINK MODULE/BEVERAGE CENTER
  • Refrigerator Dimensions : 17.5” W x 18.1” D x 26.6” H
  • Sink Dimensions : 11.3" W x 13.3" D x 7.2" H
  • Sink Material : Stainless Steel
  • Refrigerator Included : Yes
  • Faucet Included : Yes
  • Trash Bin Drawer Included : Yes
  • Wooden Cutting Board : Yes

  • Packaging Size: BC-SFS(L): 42.3"W x 41.9"H x 27"D in | BC-SFS(L):
    107.5cm(W) x 106.5cm(H) x 68.5cm(D)
  • Packaging Weight: 200 lbs. | 91 kg

Premium, All-Weather Build

Marine-grade SS304 exterior with sleek cabinetry and a UV-, heat-, scratch-, and stain-resistant white sintered stone countertop—offering modern elegance with unmatched durability.

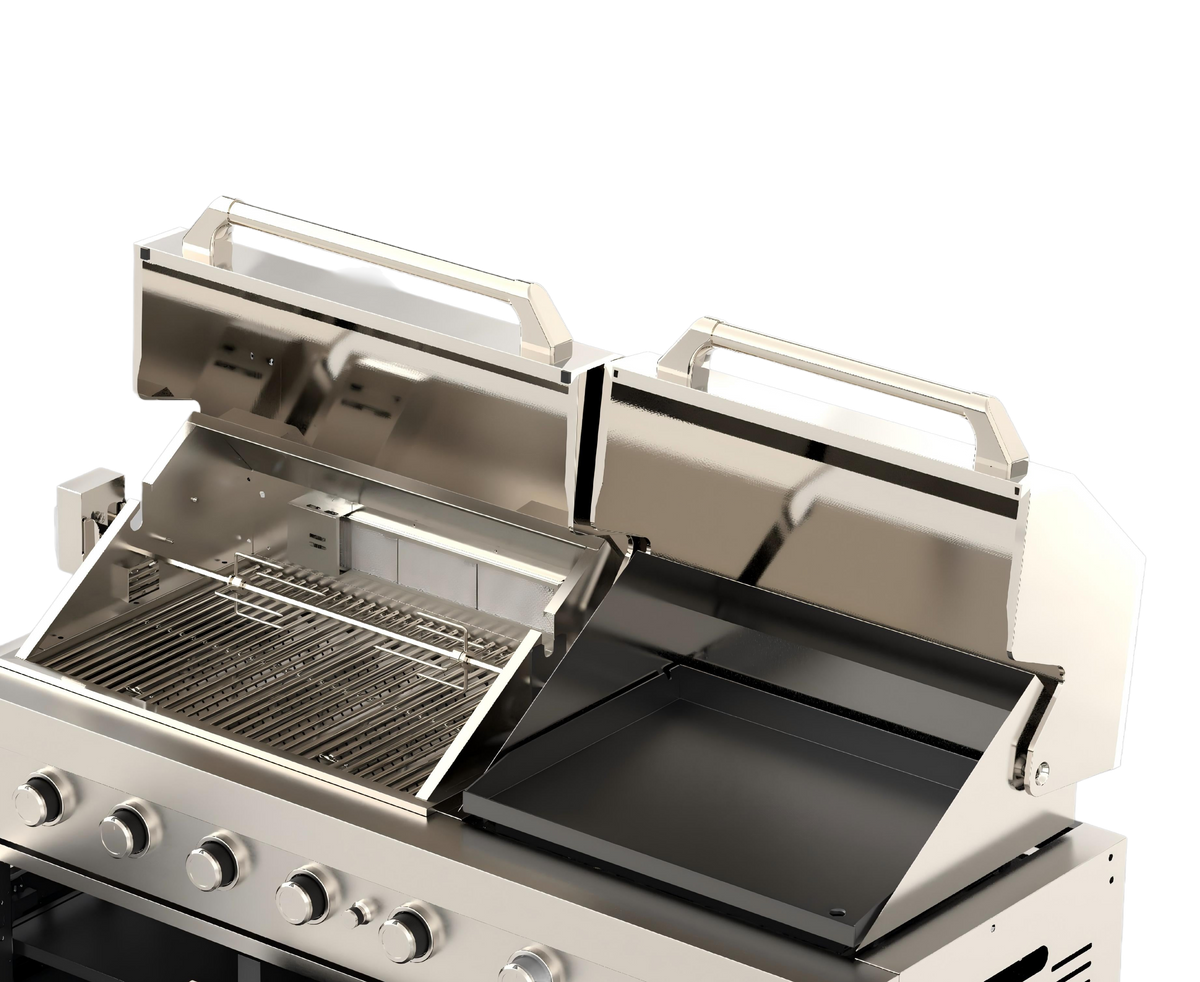

High-Performance 7-Burner System

Featuring cast stainless steel burners and a total of 87,600 BTUs, this grill & griddle powerhouse delivers restaurant-quality results, durability, and exceptional cooking versatility.

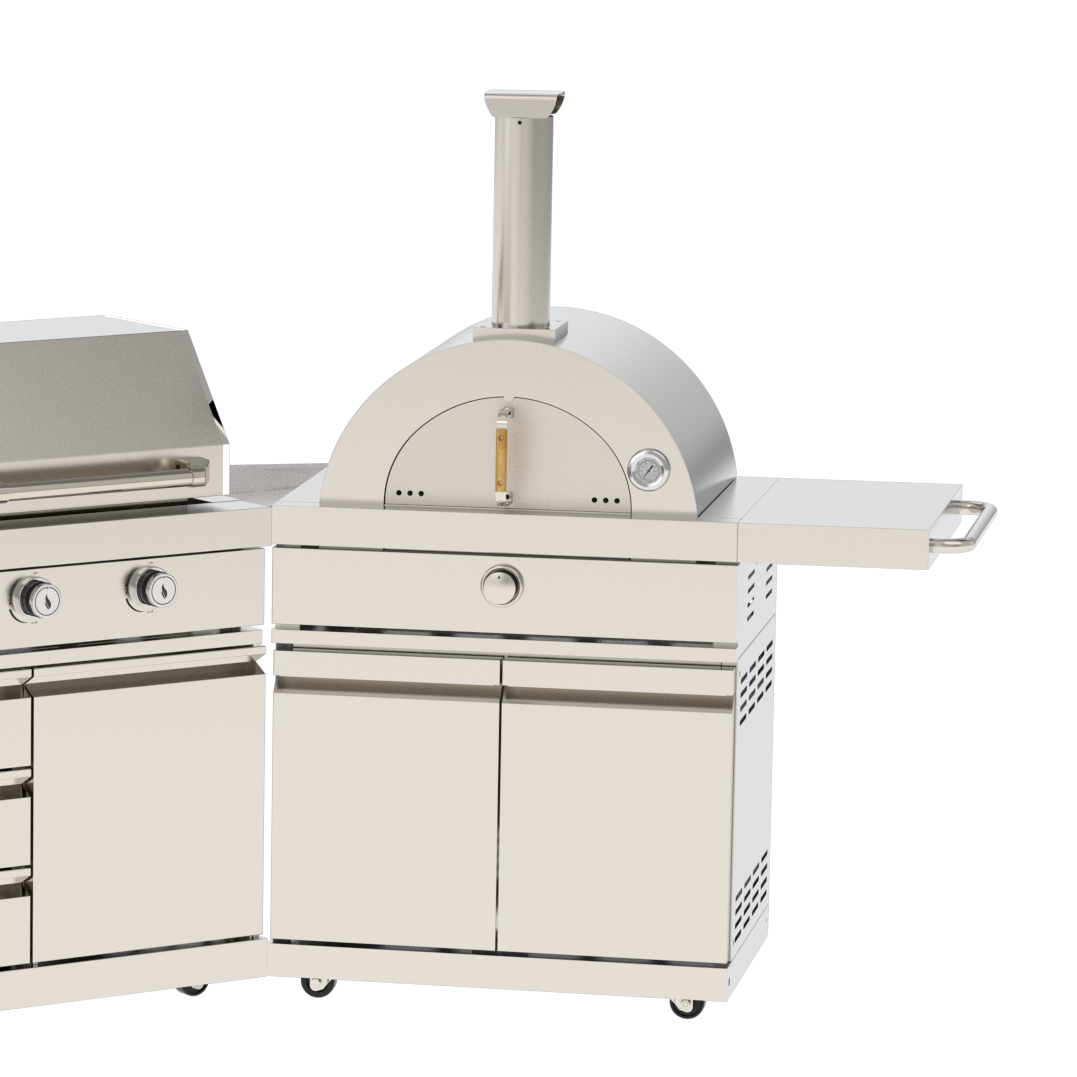

18" Gas Pizza Oven

Powered by a 9,500 BTU Jet Burner for blistering heat and even baking, delivering crisp, stone-baked crusts and bubbling cheese that rival wood-fired pizzerias.

Aluminum Stabilizer Base

Each module includes two adjustable stabilizer bases that provide added support and balance, ensuring your outdoor kitchen remains level, secure, and sturdy over time.

Product Assembly Manual

Download File（Google Drive link）

Use this text to create urgency and promote limited time offers of your products and services.

Download File（Google Drive link）
Modular Design Freedom

Choose from grill islands, bar modules, pizza ovens, kamado grills, etc.—seamlessly configured to fit your backyard kingdom.

Integrated Entertaining Features

Built-in refrigerators, sinks, bar table, and storage transform cooking into an all-in-one entertaining experience.

FAQ

No. The outdoor kitchen is delivered pre-assembled, so you can enjoy it right away. Only utility hookups (gas, water, electricity) need to be connected.

Yes. Every Yosemite module is sold separately and bolts to the next with corner plates.

Yes. The three modules bolt together either way. Triangular pieces can be removed if you would like to install it as a straight line.

Yes. Each unit includes a fitted protective cover to shield your kitchen from the elements, helping preserve its stainless steel finish and extending its life.

Yes. A rotisserie rod and motor are included, perfect for evenly cooked chicken, turkey, or roasts.
